JF727g

$512.00

Category:

Product Description

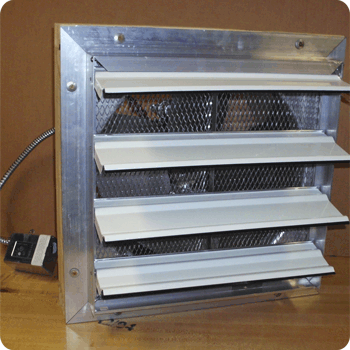

Jet Fan Attic Fans gable mounted version is for homes with hard roofing materials, such as slate, or clay tile or for homeowners who don’t want to mount a fan on the roof. The gable version comes with a high-quality Dayton Premium Shutter. Gable installation is usually a little bit more complex than roof-top installation (for instance, creating the opening in a brick home or having to cut and reinforce a stud in the attic wall, cut through siding and caulk from the outside on a ladder). A version without the shutter is available for those who already have an existing large louver vent in the attic wall.

Attic Fan Type  Gable Mount
Motor Rated
Horse Power
1/8 hp
Watts  204 W
Volts 115 V
Amps 1.7 A
RPM 1075
Cubic Feet air per minute – airflow 1200 CFM
Blade Diameter
(inches)
14″
Shutter Off-White
Aluminum
Shutter 16″X16″
Size (inches) 19 3/16″ x 19 3/16″
Square Opening Required
(inches)
16 1/2″ siding
opening
19 1/2″ rough
framing
Approx Attic Size
(sq. ft)
up to 2300′
Sq. In. Intake
Venting Required
560″
Warranty Jet Fan
10 yr
pro-rated

Additional Information

Weight 43 lbs
Dimensions 31.5 x 31.5 x 13.25 in
